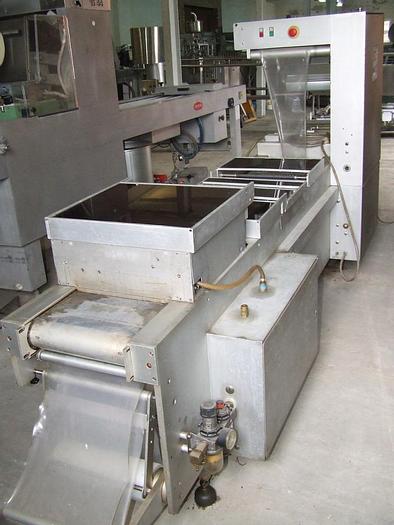

Continuous vacuum packing machine - "Multivac" M 855 F PC

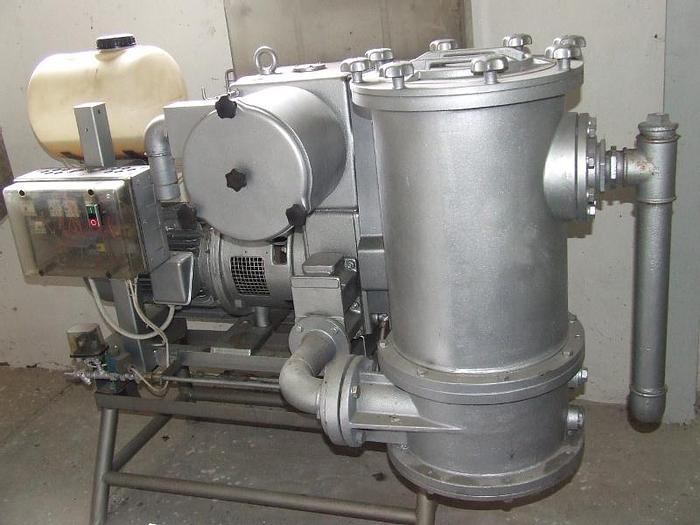

Continuous vacuum packing machine - Multivac M 855 F PC Technical data: - Producer - Multivac; - Type - M 855 F PC; - Machine number - 1347/100; - Power supply - 380 V / 50 Hz / 31 A - 3 phases; - Power - 9 kW; - Year of production - 1990 - Vacuum pump with machine; - Water supplied by min. pressure of 1.5 bar (lower pressure - the pressure sensor turns off the machine); - Supply air - max. pressure 10 bar, min. 6.5 bar; - The operating speed of the machine depends on the time needed

for implementation program, so the timing of individual functions

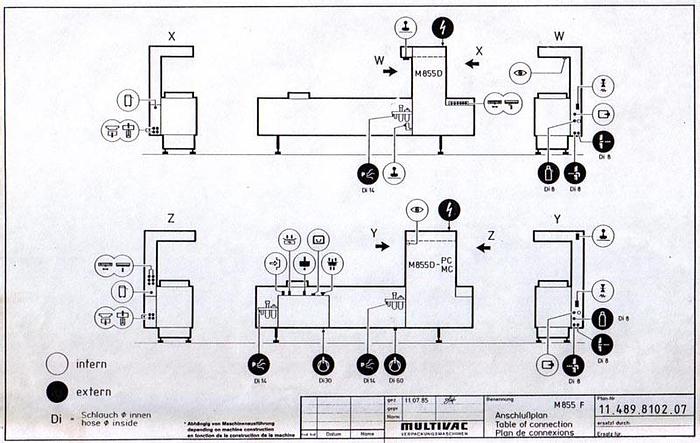

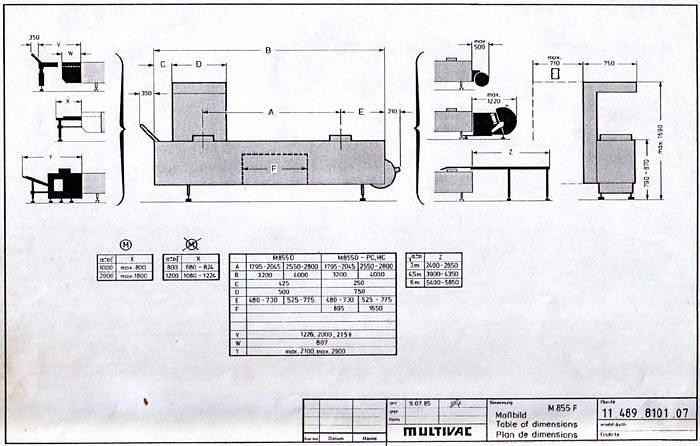

determines the maximum achievable number of cycles per minute. - Foil forming takes place in a closed forming tool. Mold dimensions: - Length - 300 mm; - Width - 190 mm; - Depth - 110 mm. Overall dimensions and connections: - For dimensions, see the following dimension and connection diagrams

(the amount of space needed for setting up the machine and arrangement

of connections has been specified) - Adjusting to the height in the given range of dimensions and leveling

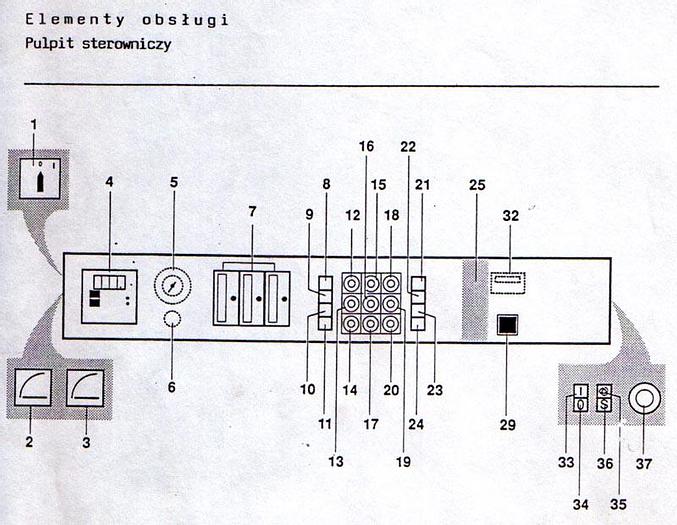

the unevenness of the floor is done by adjusting to machine feet. Control panel (see diagram below): 1. Main switch. 2. Current meter for the heating current "Fusion". 3. Current meter for the "Forming" heating current. 4. Contact vacuum gauge / vacuum gauge with digital display. 5. "Choked vacuum" indicator. 6. "Choked vacuum" setting. 7. Thermostat. 8. Illuminated button "ON / OFF control". 9. "Heating ON / OFF" illuminated button. 10. Illuminated button "Trim collector, vacuum pump ON". 11. "Trim collector, vacuum pump OFF" button. 12. Potentiometer with control lamp "Vacuum". 13. Potentiometer with control lamp "Gassing". 14. Potentiometer with control lamp "Welding". 15. Potentiometer with control lamp - gentle aeration (VS program) - or

choked vacuum (menu, program MHP). 16. Potentiometer with control lamp "Foil heating". 17. Potentiometer with control lamp "Forming". 18. Selective switch of the "Station-Vacuum" program. 19. Potentiometer with indicator lamp (only for tools with a die) "Delay -

Piston-compressed air - Compressed air-die " 20. Potentiometer with control lamp "Performance (Pause)". 21. Illuminated push-button "Photocell ON / OFF". 22. "Synchronization" illuminated button. 23. Illuminated button "Dashing, cross-cut knife". 24. "Feed" illuminated button. 25. Control for the printing unit. 29. Diagnostic indicator (error display). 32. Counter of measures (only with appropriate equipment). 33. I, "Start" illuminated push button. 34. Illuminated push button 0, "Stop". 35. "Automatics" illuminated button. 36. Illuminated push-button "Safety circuit". 37. "Emergency stop" button ("Not-Stop"). The Multivac PC has a pressure sensor or safety

switch to monitor the following conditions: The presence of a tool in the machine; · Installation of all safety covers; · Water and air pressure; · Control cabinet closing. Film transport system: The foil collecting device is used to unwind the upper and lower foil. It is generally suitable for: - Film with diffuse printing. - Film without print and film with wallpaper print with low stretching capacity.

- Foils with insensitive welding.
