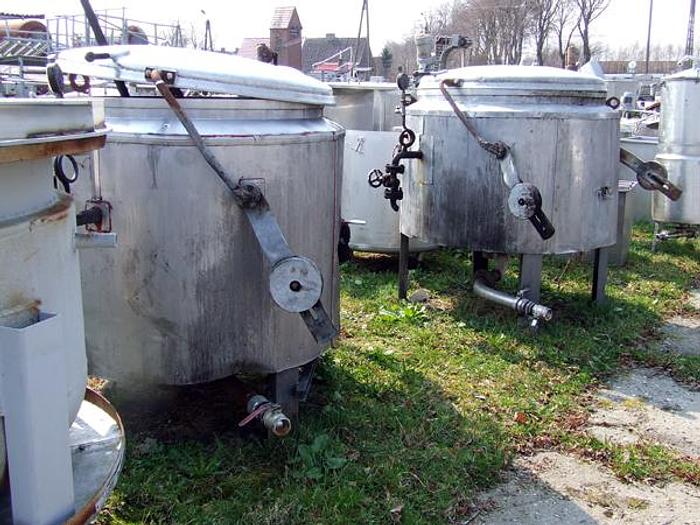

1.000 l steam boiling pan - "MKA 21"

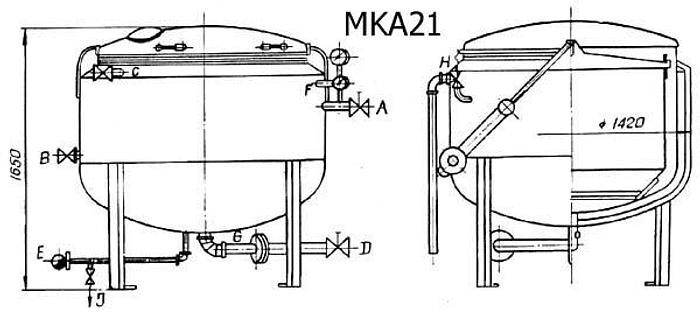

1.000 l steam boiling pan - "MKA 21" Dimensions: - internal diameter of the boiler - Ø 1,195 mm; - boiler depth - 900 mm; Technical data: - steam working pressure - 0.2 MPa; - steam temperature - 133°C; - steam demand - 100 kg / h; - total capacity - 1,000 l; - heating space capacity - 160 l; - net weight - 1.105 kg; - weight during operation - 2,000 kg; - materials in contact with the product - stainless steel; - steam jacket - boiler steel; - insulating jacket - stainless; - hemispherical bottom; - bottom central drain - Ø 70 mm. Purpose and diameter of nozzles for the diagram: * A steam supply - 32 mm; * B water supply - 32 mm; * C fat drain - 32 mm; * D water drain - 65 mm; * E condensate drain - 20 mm; * F vent cock - 10 mm; * G thermometer connector - M27x2; * H safety valve - 40 mm; * And condensate drain - 6 mm
