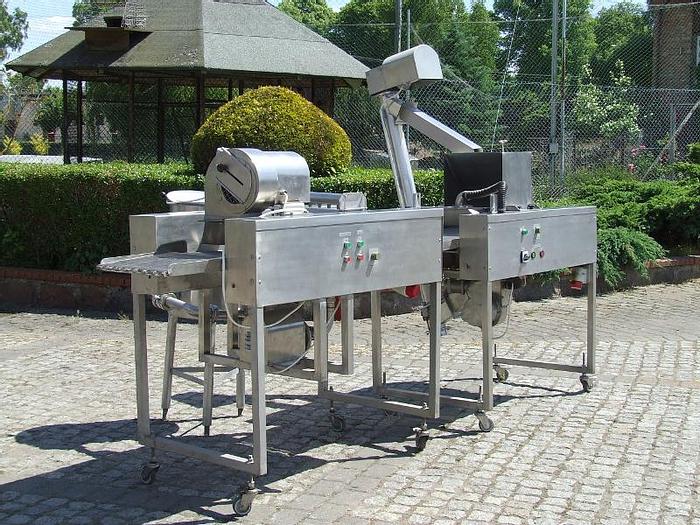

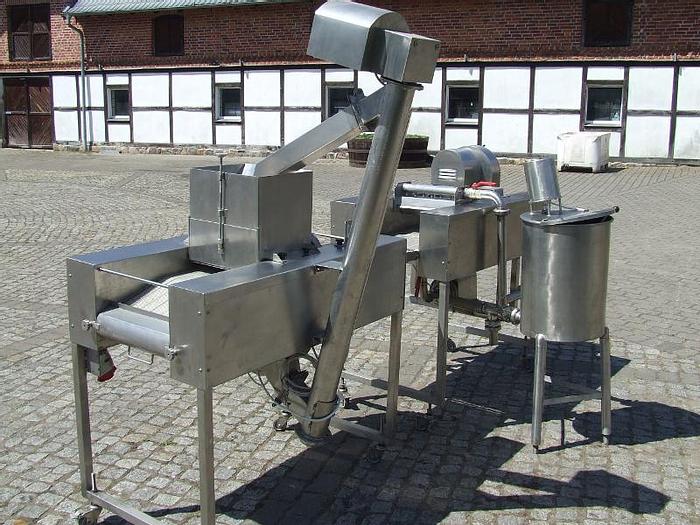

Breading band 400

Breading band 400 Adapted for breading semi-finished food products. The unit consists of a wet breading board, a wet breading mixer and

a dry breading board - all made of steel acid-resistant. Overall dimensions of the entire assembly after lining up: - Length - 3,200 mm; - Width - 1,600 mm; - Height - 2,130 mm. Overall dimensions of wet breading: - Length - 1,630 mm; - Width - 900 mm; - Width with wet batter mixer - 1,600 mm; - Height - 1,500 mm; - Belt width - 400 mm. Overall dimensions of the wet breading mixer: - diameter - 450 mm; - depth - 600 mm; - total height - 1.200 mm; - capacity - 95 l. Overall dimensions of dry breading: - Length - 1,750 mm; - width - 1,160 mm; - height - 2,130 mm; - belt width - 410 mm. - Data of the drives of the wet breading machine and the batter mixer:

- belt motor

(smooth speed control by the inverter) - 0.37 kW;

- pump motor - 0.75 kW; - blower motor - 0.3 kW; - Bread mixer motor - 0.5 kW; - total installed power - 1.92 kW. Drives data of dry breading: - belt motor (smooth speed control by inverter) - 0.37 kW; - dry breading screw feeder motor - 1.1 kW; - blower motor - 0.25 kW; - total installed power - 1.72 kW. The total installed power in the whole set of breading machines - 3.64 kW.
