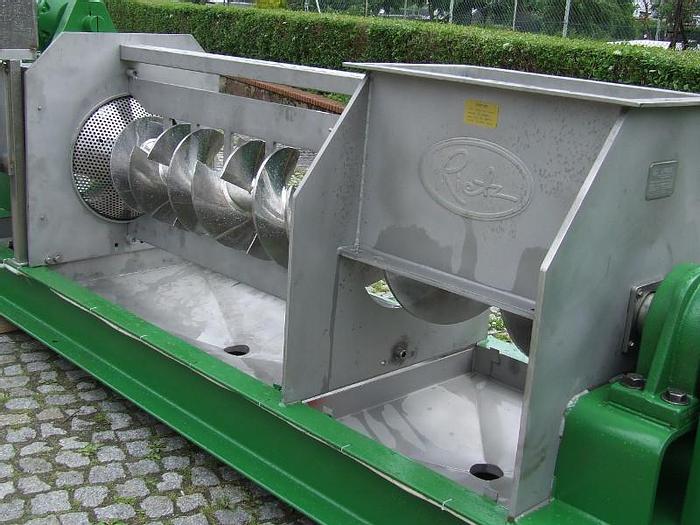

Press, screw (separator) with a slotted screen "RIETZ" S-PRESS

Press, screw (separator) with a slotted screen "RIETZ" S-PRESS It is used to separate solids from liquids. It is also used

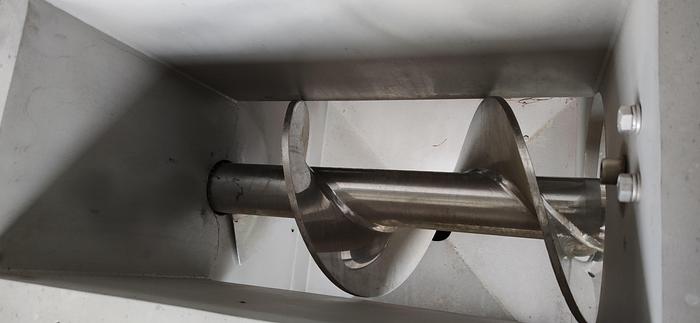

to extract vegetable and fruit juices Dimensions: - Length - 5,750 mm; - Width - 1,000 mm; - Height - 1,600 mm. Main (pressing) screw dimensions: - Length - 2,420 mm; - Diameter - 400 mm. Hopper dimensions: - Length - 760 mm; - Width - 390 mm; - Depth to the top of the screw - 310 mm; - Depth to the bottom of the screw - 710 mm. Technical data: - Model - RSP-16-K2; - Serial number - RSP-740 109; - Main drive - engine - 13,7 kW - 1.460 U/min. drives the gear with

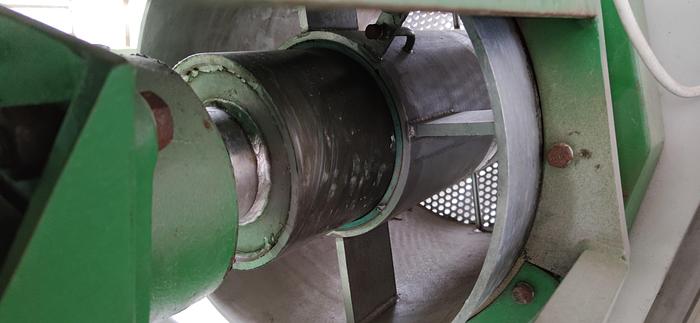

smooth speed control (variator) in the range of 10-20 U/min; - Pressing cone drive - motor - 2.2 kW - 1.425 U/min. drives the gear

with smooth speed control of the cone (variator) in the range of 2-5 U/min; - Pneumatic actuator of the pressure cone - operation regulated with a manual throttle; - Air working pressure - 7-8 bar.
