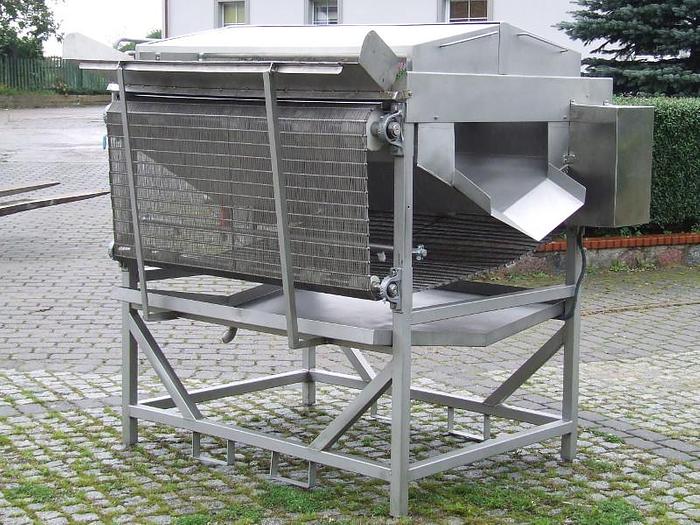

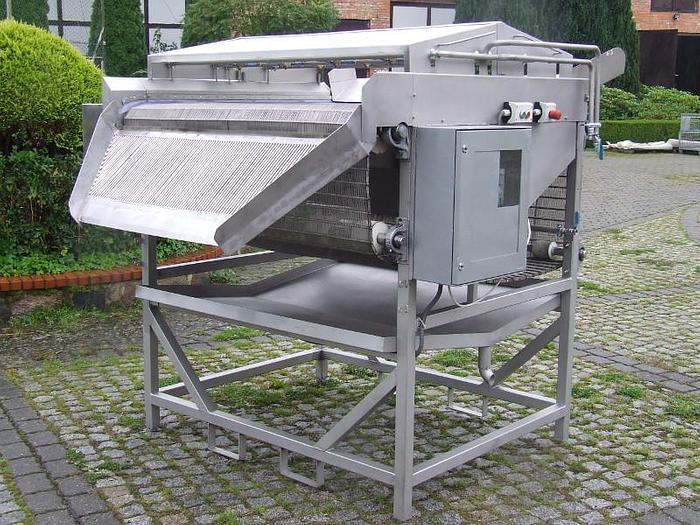

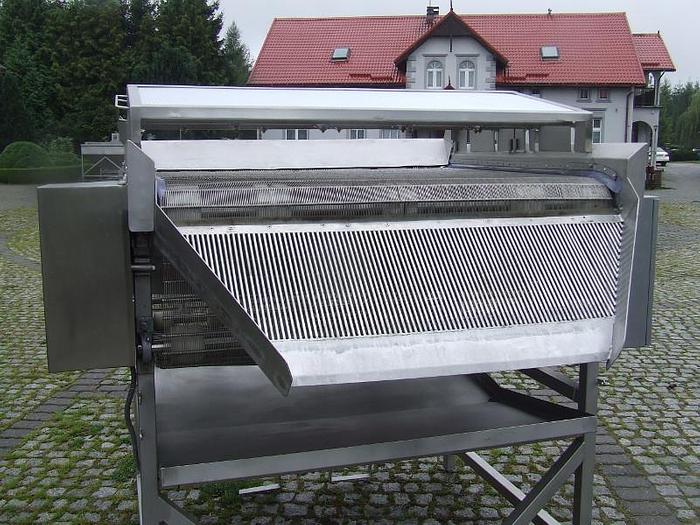

Glazing device

Glazing device Dimensions: - Total length - 2,200 mm; - Width - total - 2,000 mm; - Total height - 1,900 mm. Technical data: - Belt drive - motoreducer - motor - 0.55 kW / 1,370 U / min; - Adjustable working belt speed - inverter; - 2 rows of water-dispersing glazing sprays (water mist); - Working belt - stainless; - Belt working length - 1,500 mm; - Belt working width - 1,400 mm; - Width of the charging chute - 1,300 mm; - The width of the discharge chute - 1,300 mm, narrowed to 900 mm; - Drip tray under the upper working belt with a gutter drain; - Spray strip washing section - on the return; - Drip tray under the bottom belt with a pipe drain - Ø 50.
