Ammonia coolers type SOW P (I think) 2A-F (I think) 144.2

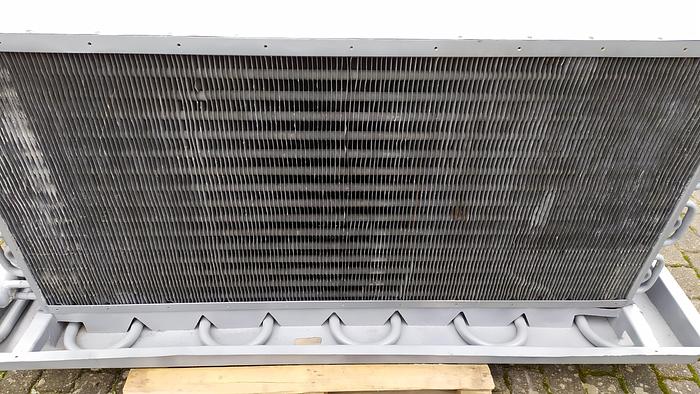

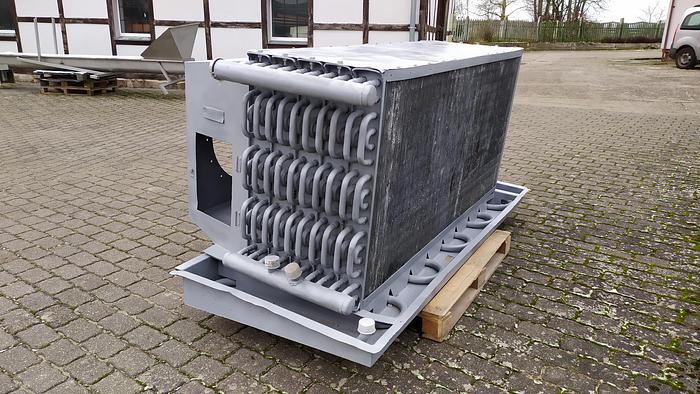

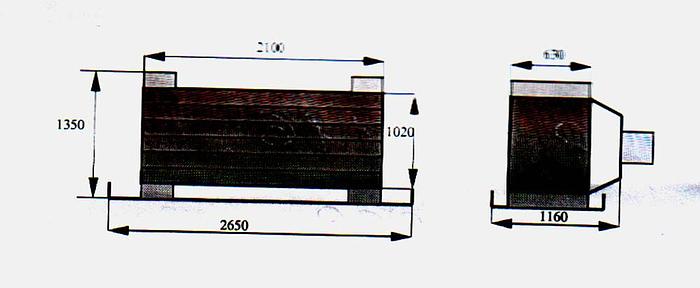

Ammonia coolers type SOW P (I think) 2A-F (I think) 144.2 Overall dimensions of the cooler: - Total length - 2,650 mm; - Total width (without the engine) - 1.160 mm; - Total height - 1,350 mm; - Radiator length - 2,100 mm; - Radiator width - 630 mm; - Radiator height - 1,020 mm. Technical data of coolers: - Producer - Steel Structures Company, Refrigeration and Industrial Equipment "MOSTOSTAL" Wrocław; - Type - SOW P (I think) 2A-F (I think) 144.2; - Year of production - 1990; - Net weight - 1,800 kg; - Fans - 2 pcs; - Anticorrosive hot-dip galvanized coating; - Diameter of radiator tubes - 25 mm (steel); - The spacing between the fins - 15 mm (from the outside) and 17 mm (from the fans). Technical data of the fan: - Producer - F.U.W TYWENT Rzeszów; - Type - WOCH 56CA3; - Year of production - 1990; - Maximum temperature - + 40°C; - Weight without engine - 26 kg; - Turnover - 24 1 / s; - The internal diameter of the fan - 780 mm. Technical data of the fan motor: - Type - S690L4K; - Power - 1.5 kW; - Net weight 20 kg.
