French fries production line with an input capacity of up to 3 t/h.

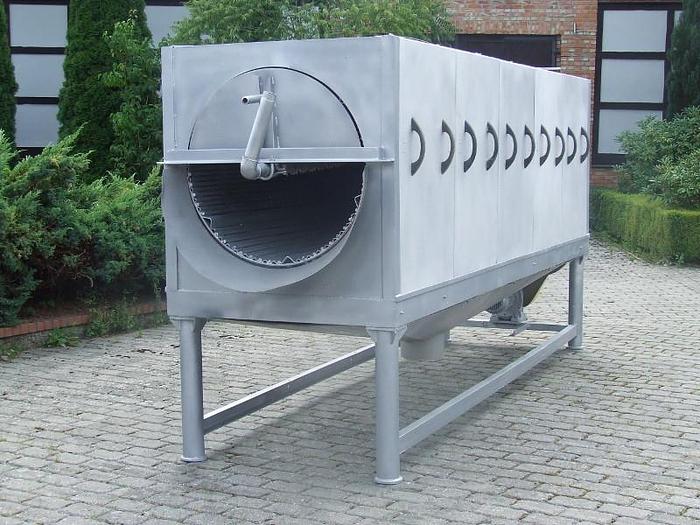

French fries production line with an input capacity of up to 3 t/h. Drum washer, Spomasz Wronki, Poland - type Z01E54

It is used washing vegatables. The drum made of carbon steel, aluminium casing, carbon steel frame. Dimensions: - Overall length - 4,400mm; - Width - 1.250mm; - Height - 1,940mm. Technical data: - Manufacturer Spomasz Wronki, Poland; - Year of production - 2000; - Installed power - 1.5 kW - Max capacity - 3,500 kg/h, - Water demand - 4,000 l/h; - Water pressure - 4kg/cm²; - Drum rotation - 12 rpm; - Drum diameter - 900mm; - Drum length - 3,800 mm; - Weight - 1.775 kg. Unit for pressure scalding of root vegetable epidermis Dimensions: - Length - 6,200mm; - Width - 4,500mm; - Height - 3,700mm. The set includes the following devices: 1. Stag loading conveyor - version - carbon steel; 2. Right/left belt feeder for two weighers-loaders - made - stainless steel; 3. Two screw weighers and loaders for scalloping pears - made of stainless steel; 4. Tandem of two pressurized scalding bulbs, 350 liters each: - frame - carbon steel; - covers on the frame - stainless steel; - asymmetric chute with one hole - stainless steel; - pears - galvanized boiler steel; 5. Expansion tank - boiler steel; 6. Threshold conveyor, diagonal receiving from a common discharge - stainless steel; 7. Process control cabinet and pneumatics box. Technical data: - Manufacturer - Antonov Aviation Plant, Ukraine - Cycle length - up to 240 seconds; - Electricity - 6KW; - Compressed air consumption min. 6 bar - 5 m³/h; - Steam consumption under pressure up to 10 bar - 800 kg/h; - Efficiency - up to 6 tons/h with fresh root material (straight from the field). 5 roller peeler Dimensions: - Overall length - 4,450mm; - Total width - 1.100 mm; - Total height - 2,250 mm; Technical data: - The device after renovation in 2022; - Brush peeling rollers: - Number of brush rolls - 5 pcs.; - Working length of the brushes - 3.050 mm; - Roller diameter - 200 mm; - Execution of peeling bristles - plastic, - Transport screw: - Diameter - 560mm; - Execution - shaft made of stainless steel, blade made of stainless steel and plastic - Drives: - Screw drive - 0.75 kW; - Brush drive - 0.55 kW; - Device version: - Frame - painted carbon steel; - Feed - stainless steel Stainless selection table for the separation of scrap material Dimensions: - Belt working length - 5,000 mm; - Belt working width - 800-1,000 mm; - Adjustable height - 900 mm (+/- 100 mm). Technical data:

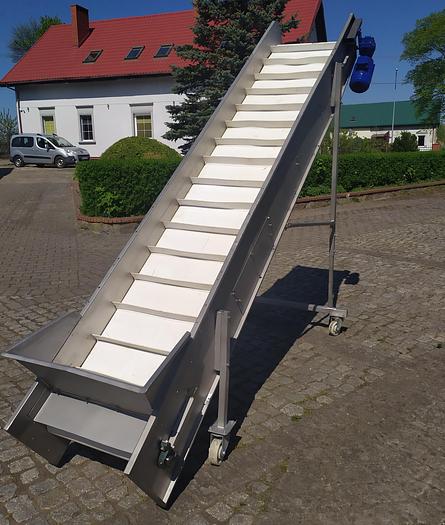

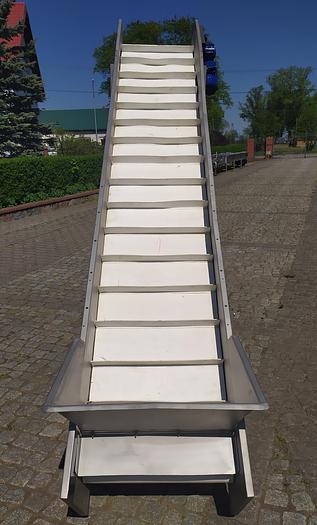

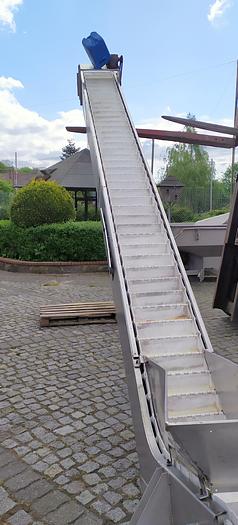

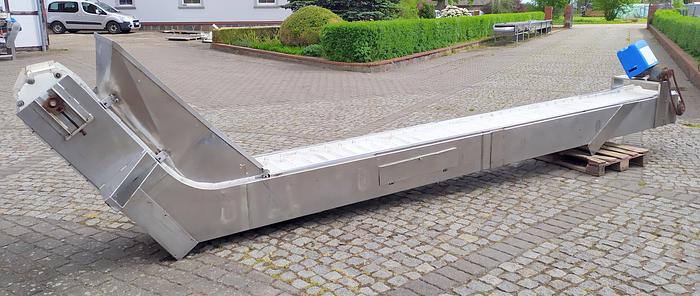

- After renovation in 2023; - Construction - stainless steel, - Belt - PU for the food industry - Motor - 1 kW, Belt conveyor (transporter), diagonal, threshold - stainless

Dimensions:

- Length - 3,300mm;

- Width - 780mm;

- Height - 2,500 mm (adjustable).

Technical data: - Belt length - 3,550 mm; - Belt width - 600 mm; - Spacing between the thresholds - 190 mm; - Threshold height - 60 mm; - Polyurethane tape; - Height of side boards - 175 mm; - Dimensions of the hopper: - Width - 700mm; - Depth - 220mm; - On four swivel wheels for easy movement; - Made entirely of stainless steel. The "BOEMA" descaler is made entirely of stainless steel

Dimensions:

- Length - 2.200mm; - Width - 1,500mm; - Height - 2,550mm.

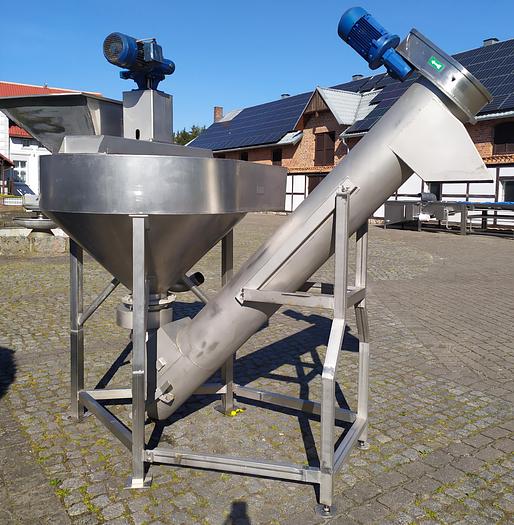

Technical data: - Manufacturer - "BOEMA", Italy, 2007 - Dimensions of the descaling tank: - Diameter: Ø 1.100mm; - Height: 800mm; - Dimensions of the hopper - 800mm x 600mm; - Charging at the height - 1.150 mm; - Discharge dimensions - 320mm x 320mm; - Discharge height - 1,650 mm; - Dimensions of the stone removal auger: - Length - 2.500mm; - Section - Ø 300 mm; - Screw pitch - every 130 mm. Slicer "URSCHEL" model GK

The slicer cuts various types of seedless fruits and root vegetables into slices, sticks or cubes depending on the use of the cutting units. Maximum slice thickness - 19.1 mm. Maximum cube size - 19.1 x 19.1 x 19.1 mm.

Dimensions:

- Length - 1.500mm; - Width - 1,200mm; - Height - 1.230mm.

Technical data:

- Manufacturer - Urschel, USA; - Model - GK can cut straight slices, bars or cubes; - Motor power - 1.5KW; - Rotation - 1.470 rpm; - Capacity - up to 3.5 t/h; - Slicer currently tooled into cubes - 10 x 10 x 10 mm.

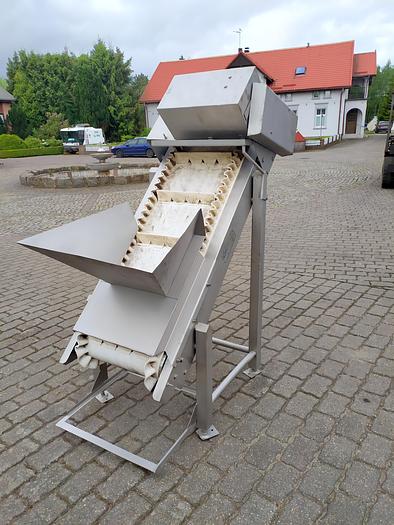

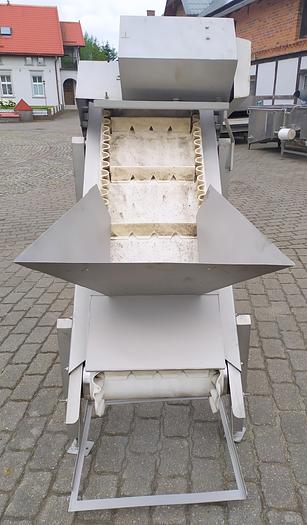

Threshold conveyor (transporter) with side frill "GAUDIN" - stainless

Dimensions: - Length - 1.500mm; - Width - 800mm; - Height - 1,700mm; Technical data: - Producer - Gaudin; - Year of production - 1992; - Polyurethane tape with cleats and side frill; - Belt length - 1,600 mm; - Belt width - 500mm; - Charging at the height - 1.050 mm; - Feed size: - Width at the widest point - 800 mm; - Width at the narrowest point - 480 mm; - Length - 600mm; - Depth - 460mm; - Distance between drivers - 300 mm; - Driver height - 60 mm; - Lifting height - 1,600 mm; - Drive: geared motor - motor - 0.55 kW; - Frame and construction - stainless steel. Tubular blanker (screw) Type 33 BRA Dimensions: - Length - 6,000mm; - Width - 600mm; - Height - 1.700 mm. Technical data: - Producer - Spomasz Wronki; - Steam consumption - 350 kg/h;

- Steam pressure - 0.3 - 1.5 kg/cm2; - Screw length - 6,000 mm; - Screw diameter - 300 mm; - Blanching time - 4 - 20 min; - Capacity - approx. 1,000 kg/h; - Installed power - 0.8 kW;

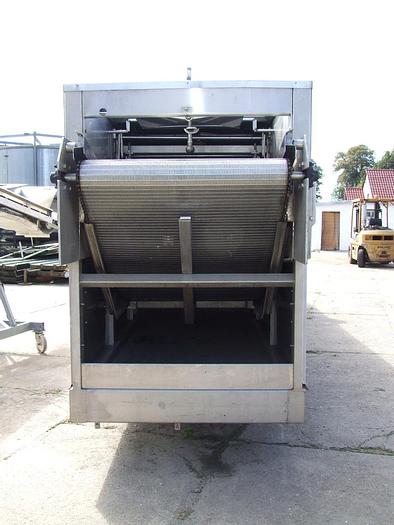

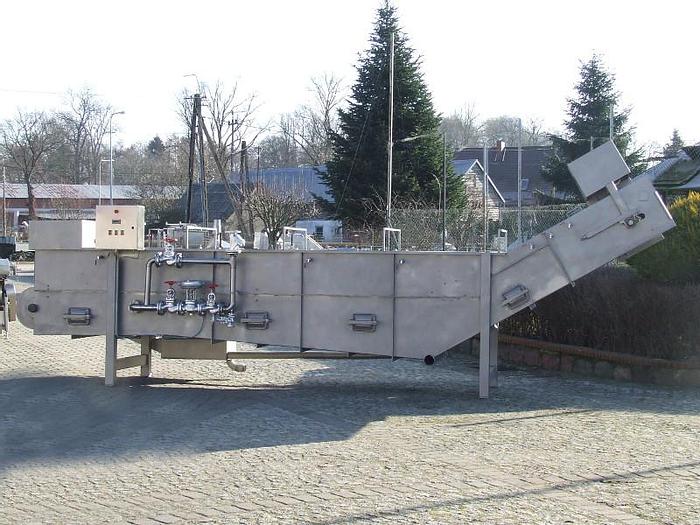

- Construction - stainless steel - Weight - 800 kg. Belt blancher "MEYN" with upper pressure for product made entirely of stainless steel. Dimensions: - Length - 7,300mm; - Width - 1,750mm; - Height - 2,750 mm. Technical data: - Tape working dimensions: - Length - 7,000mm; - Width - 1.000mm; - Dimensions of inspection windows (8 pcs.) - 230mm x 175mm. - Modular belt with carriers; - Height of the driver on the belt - 120 mm; - Tape speed - adjustable; - Drive - motoreducer with speed control: 1.5 kW, 1440 rpm; - The blanching chamber has 5 hinged top lids with a water seal; - Hopper dimensions - 1.040mm x 300mm; - Lid dimensions - 800mm x 950mm; - Height to charge - 1.000 mm; - Discharge dimensions - 1.040mm x 500mm; - Height to dump - 1.850 mm; - Filter chamber dimensions - 700mm x 300mm x 900mm; - Double filter - mesh; - Water circulation pump for working space and overhead showers; - Pump power - 3.5kW - 1440 rpm. Stainless belt dehumidifier with fans built over the belt Dimensions:

- Belt working length - 6,500 mm; - Belt working width - 960 mm; - Height - adapted to receive from the blancher and feed to the fryer; Technical data - Producer - Konsorcjum Andziak Sp.J., 2023; - Execution - stainless - Belt - mesh, stainless; - Fans for drying the product - 5 pcs. (radial); - Tape drive power - 1 kW; - Fan drive power - 1.1 kW/pc. A team for searing and frying food products Dimensions: - Length - 11,000mm; - Width - 1,600mm; - Height - 2.500mm. Technical data: - Producer - Florigo (Netherlands); - Model - 181 2008; - Year of production - 2008; - Belt working length - 11,000 mm; - Belt working width - 1.000 mm; - Top product pressure belt; - The height of the pressure tape is adjustable and adjustable clearance to the working belt at 180 mm; - Tape drive power - 2.5 kW; - Smooth adjustment of the tape travel; - Pressure tape drive power - 1 kW; - Smooth adjustment of the pressure belt drive; - Drive power of the gathering section - 1 kW; - Smooth adjustment of the section drive with selectors; - The system of lifting the lid and belt of the fryer for washing; - Equipped with extinguishing system; - Hoods catching fumes at the entrance and exit of the fryer; - Equipped with central CIP washing system; - Casing walls and top covers insulated; - Water sealing of the upper covers; - Tank for pumping oil from the bathtub - capacity - 3 m3; - Peripheral oil filtering device during operation; - Pipe and valve system connecting fryer, filter device and oil tank; - Entirely made of stainless steel; - Furnace with oil heater; - Furnace heating medium: oil or gas; - Oil heating system: - a furnace powered by fuel oil or gas; - tubular heater; - technological oil circulation pump - 3.5 kW; Shaking and separating vibrating conveyor Dimensions : - Length - 2,950 mm; - Width - 1,150 mm; - Height - 1,630 mm. Technical data : - Working length of the upper shaking and separating chute - 2,600 mm; - Working width of the upper shaking and separating chute - 750 mm; - The size of the holes in the shaking and separating net - 3 x 20 mm; - Working length of the lower slotted sieve for dripping oil - 1,770 mm; - Working width of the lower slotted sieve for dripping oil - 750 mm; - Dimension of the dripping tub - 800 x 600 mm; - Dimension of the bottom opening for French fries - 700 x 200 mm; - Execution - stainless. - Weight - 1.000 kg. "Z" Type bucket feeder (transporter) Dimensions: - Total length - 6.550 mm; - Total width - 1.003 mm; - Total height (at maximum lift) - 4,500 mm. Technical data: - Type - R 40 - VU1; - Manufacturer - SEW - EURODRIVE Bruchsel/Germany; - Belt length - 6,700 mm; - Belt width - 450 mm; - Bucket width - 400 mm; - Depth of buckets - 130 mm; - Feed size: -Length of the charge - 1.300 mm; - Depth of charge - 400 mm; - Feeding width at the widest point - 800 mm; - The width of the filling at the narrowest point - 400 mm; - Charging height - 700 mm; - Discharge height (lifting) - 4,200 mm; - Geared motor - motor 1,400 rpm; - Bucket belt - polyurethane; - Construction - stainless steel. Fluidized 2-belt freezer tunnel (IQF) - without thermal insulation housing and refrigeration engine room Dimensions: - Overall length - 9.100mm; - Total width - 4.600 mm; - Total height - 3.500 mm. Technical data: - Manufacturer - C.E.C.M.I. I.Q.F.; - Type A 30 Model 4 + 4; - Execution - completely stainless; - Capacity - 3 t/h for peas; - Cooling power - 450 kW - with evaporation of the factor: -38 °C; - Total installed electrical power - 90 kW; - Input power: approx. 80 kW; - Two working tapes; - Each tape with a separate drive controlled by an inverter; - I belt - axial fans - 4 x 15 kW, 2.900 rpm; - II belt - turbine fans - 4 x 7.5 kW, 2,900 rpm; - Belt width - 1.250 mm; - Working length of the first belt - 4.300 mm; - Working length of the second belt - 4.600 mm; - Feeder length - 2,000 mm; - Width of the feeder - 1,250 mm; - Dump - stainless; - Structural elements, floor, barriers, platforms, feeder, etc. made of stainless steel; - Control cabinet after revision.
