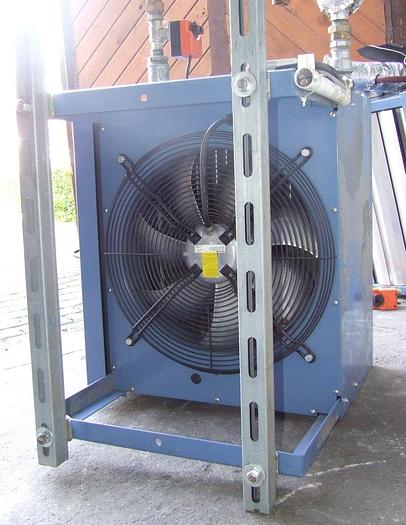

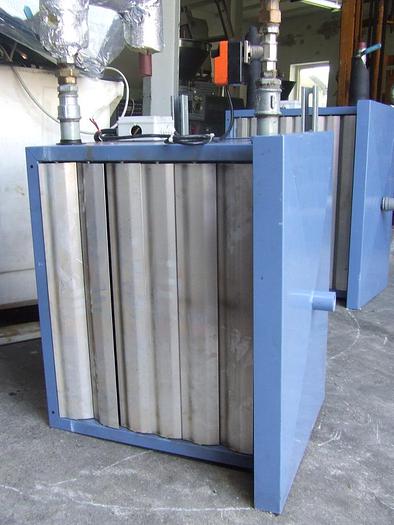

"AL-KO" air heaters / air coolers

"AL-KO" air heaters / air coolers

They are used only for heating or cooling the air and optional ventilation (air heaters) and indoor cleaning of rooms and buildings with normal climates and normal atmospheres. Heaters / coolers air have been adapted to work in the ambient temperature range from -20°C to + 40°C and in the humidity range 50% to 85% relative air without condensation.

Dimensions: - Length - 830 mm; - Width - 730 mm; - Height - 680 mm. Technical data: - type - LHIND 400-6KN / B / T / SPEZ; - working pressure - 16 bar (tested at 32 bar; - Fan: - engine - 3 phases - power - 0.28 kW: - 590 U / min. in first gear; 0.4 kW; - 950 rpm in second gear.

Dimensions:

- Length - 730 mm; - Width - 680 mm; - Height - 570 mm.

Technical data: - type LH IND 250 - 4KN / B / T / SPEZ; - working pressure - 16 bar (tested at 32 bar): - Fan: - engine - 3 phases - power - 0.26kW: - 1420 U / min. in 1st gear; - 0.18 KW; 940 U / min. in 2nd gear.
