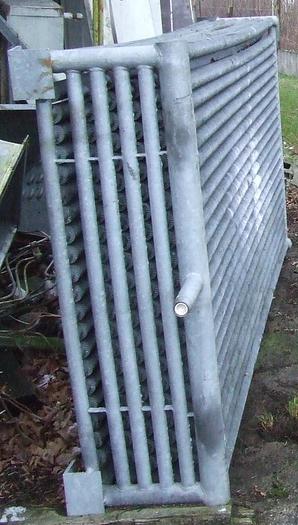

A steel, galvanized, tubular heat exchanger with lamellas rounded on the pipes

Steel, galvanized, tubular heat exchanger with lamellas

rounded on pipes Dimensions:

- length - 3,070 mm; - width - 400 mm; - height - 1,220 mm. Detailed dimensions:

- number of tubes - 6x22 = 132 tubes; - tube length - 2,520 mm; - outer diameter of the tubes - 25 mm; - outer diameter of the collector pipes (10 pcs) - 38 mm; - length of collector pipes - 1,120 mm; - outer diameter of the collector pipes (2 pcs) - 76 mm; - length of collector pipes - 1,120 mm; - core tube diameter (length 200 mm) - 45 mm; - core tube diameter (length 250 mm) - 76 mm; - height of the lamellae blade twisted on the tube - 13 mm; - spacing between lamella blades - 4 mm.
