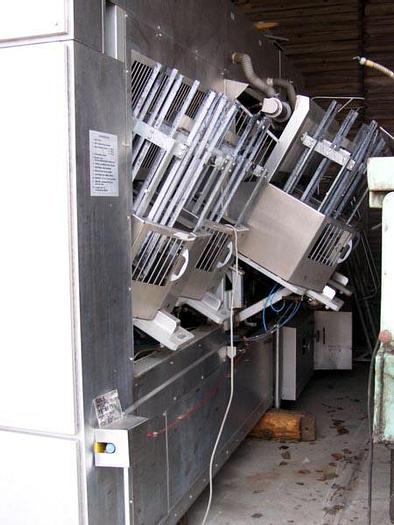

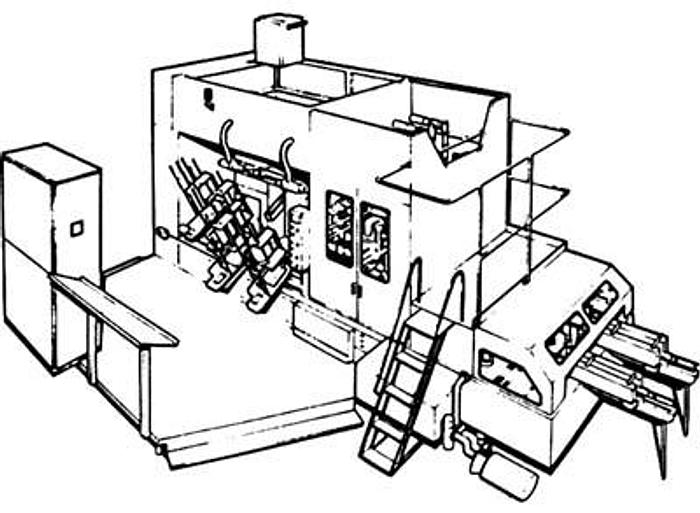

Packing machine "TETRA PAK" - TETRA REX system Type RC4 with a packing line

Packing machine "TETRA PAK" - TETRA REX

system Type RC4 with a line for packing Machine with a capacity of 10,000 pcs/h, with the possibility of

simultaneously pouring 2 different products, 5,000 pcs.pack/h

On the line you can simultaneously pour milk, kefirs, yoghurts,

cream, fruit and vegetable juices, wines, ketchup and other liquid products Dimensions: - Length - 6,500 mm; - Width - 2,300 mm; - Height - 3,300 mm. The packaging machine packs in 0.5 l cartons: - Width - 70 mm; - Height - 100 mm. The packaging machine packs in 1 l cartons: - Width - 70 mm; - Height - 200 mm. Technical data: - Air operating pressure - 6 atm; - Total power demand - 12 kW; - Made entirely of stainless steel. Additionally, the line may include a system of conveyors collecting

packages with the product from each line separately and a station for

wrapping, forming and shrinking packages of 12 in foil with an alternating

electronic system packing products from each line. The total length of the

conveyors is about 20 m, made entirely of steel stainless. Chains made of

polyethylene plastic - articulated links. Product forming and wrapping station: - Length - 1,900 mm; - Width - 1,700 mm; - Height - 2,200 mm; - Power demand - 12 kW; - Made of varnished elements. Shrink tunnel: - Length - 5,000 mm; - Width - 1,200 mm; - Height - 1,200 mm; - Heater power - 15 kW with a thermoregulator; - Engine power - 0.33 kW; - Made of varnished elements.
